Rotameters: The Reliable Mechanical Solution for Flow Measurement
Discover how this time-tested technology delivers accurate flow measurement without external power requirements
How Rotameters Work: Simple Physics, Reliable Results
Rotameters operate on Archimedes’ principle of buoyancy, combining fluid dynamics with mechanical simplicity:
- Tapered tube design (3-5° cone angle) creates variable flow area
- Float position indicates flow rate at equilibrium
- No external power required for basic operation
- ±2-5% accuracy across measurement range
Rotameter Types and Their Industrial Applications

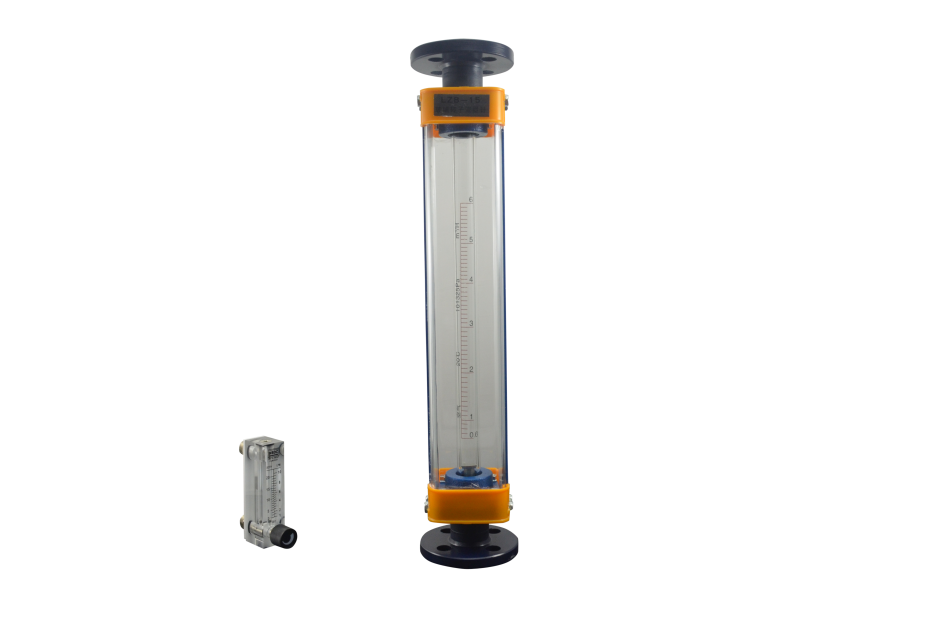

Glass Tube Rotameters
- Borosilicate glass construction
- 0-60°C operating temperature
- Max 16 bar pressure
- Visual indication only
Best applications: Laboratory use, low-pressure water/air systems

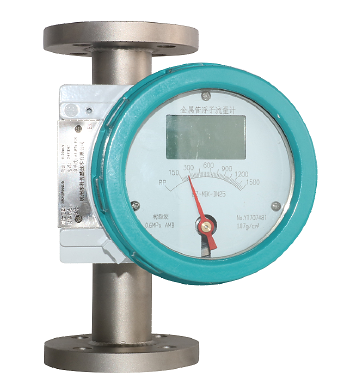

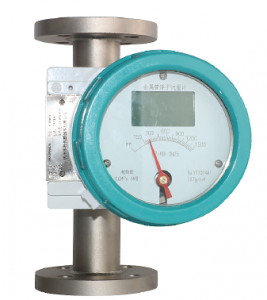

Metal Tube Rotameters
- Stainless steel/Hastelloy options
- -40 to 400°C temperature range
- Up to 160 bar pressure
- 4-20mA output available
Best applications: Oil/gas, chemical processing, industrial plants
Key Industries Using Rotameter Technology
Chemical Processing
Precision control of additives and reagents
Water Treatment
Chemical dosing and flow monitoring
Power Generation
Coolant and lubricant flow measurement
Gas Analysis
Sample flow regulation to analyzers
Why Choose Rotameters for Your Application?
No External Power Required
Low Maintenance Design
Visual Verification
Expert Rotameter Selection Assistance
Our engineers can help you choose the optimal rotameter configuration for your specific fluid, pressure, and accuracy requirements.
Technical support available Monday-Friday, 8:30-17:30 GMT+8
