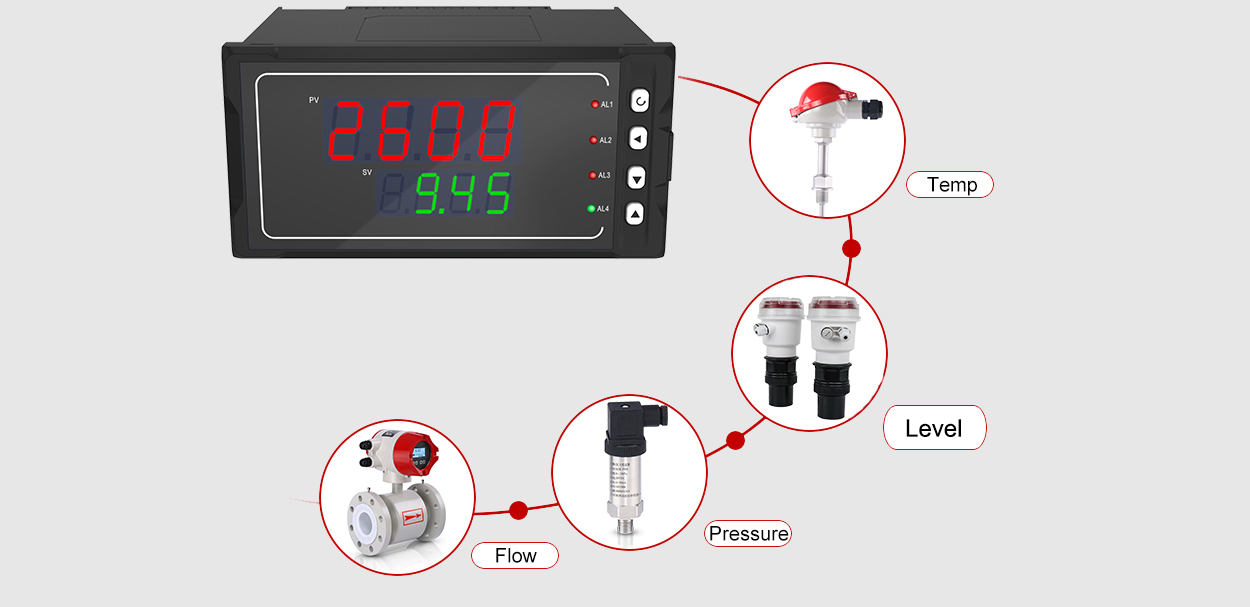

MIK-2600 LCD Flow (Heat) Totalizer / Recorder
-
Specification
| Product | LCD Flow (Heat) Totalizer / Recorder |
| Model | SUP-2600 |
| Dimension | A. 160*80*110mm B. 80*160*110mm C. 96*96*110mm D. 96*48*110mm |
| Measurement accuracy | ±0.2%FS |
| Transmission output | Analog output—-4-20mA、1-5v、 0-10mA、0-5V、0-20mA、0-10V |
| Alarm Output | With upper and lower limit alarm function, with alarm return difference setting；Relay capacity： AC125V/0.5A(small) DC24V/0.5A(small)（Resistive load） AC220V/2A(big) DC24V/2A(big)（Resistive load） Note: When the load exceeds the relay contact capacity, please do not directly carry the load |
| Power supply | AC/DC100~240V (Frequency 50/60Hz) Power consumption≤5W DC 12~36V Power consumption≤3W |
| Use environment | Operating temperature（-10~50℃）No condensation, no icing |
| Printout | RS232 printing interface, micro-matched printer can realize manual, timing and alarm printing functions |
-
Introduction
LCD flow totalizer is mainly designed for trading discipline between supplier and customer in regional central heating, and calculating steam, and high precision flow measurement. It’s a full-functional secondary instrument based on 32-bit ARM micro-processor, high-speed AD and large-capacity storage. The instrument has fully adopted surface-mount technology. It has good EMC ability and high reliability because of heavy protection and isolation in design. It is embedded RTOS, USB Host, and high-density FLASH memory, which can record 720-day length sampling data. It can automatically identify saturated steam and superheated steam. It can also be used for process monitoring and volume control of steam heat.
Input signal type :
| Signal type | Measurable range | Signal type | Measurable range |
| B | 400~1800℃ | BA2 | -200.0~600.0℃ |
| S | -50~1600℃ | 0-400Ω linear resistance | -9999~99999 |
| K | -100~1300℃ | 0~20mV | -9999~99999 |
| E | -100~1000℃ | 0-100 mV | -9999~99999 |
| T | -100. 0~400.0℃ | 0~20 mA | -9999~99999 |
| J | -100~1200℃ | 0~10 mA | -9999~99999 |
| R | -50~1600℃ | 4~20mA | -9999~99999 |
| N | -100~1300℃ | 0~5V | -9999~99999 |
| F2 | 700~2000℃ | 1~5V | -9999~99999 |
| Wre3-25 | 0~2300℃ | 0~10V customized | -9999~99999 |
| Wre5-26 | 0~2300℃ | √0~10 mA | 0~99999 |
| Cu50 | -50.0~150.0℃ | √4~20 mA | 0~99999 |
| Cu53 | -50.0~150.0℃ | √0~5V | 0~99999 |
| Cu100 | -50.0~150.0℃ | √1~5V | 0~99999 |
| Pt100 | -200.0~650.0℃ | Frequency | 0~10KHz |
| BA1 | -200.0~650.0℃ |
