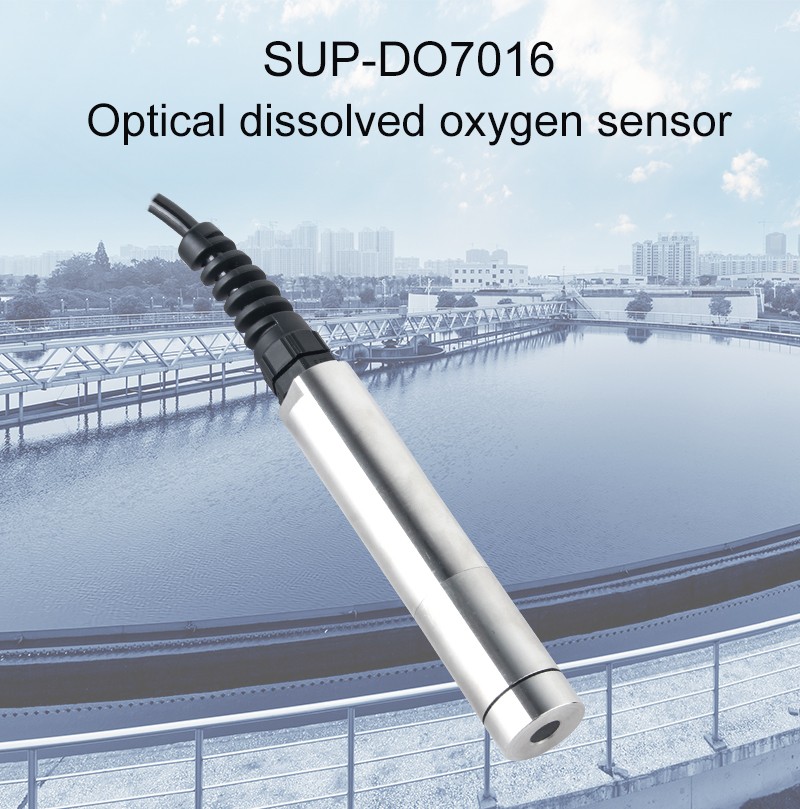

MIK-DO7016 Optical dissolved oxygen sensor

Short Description:

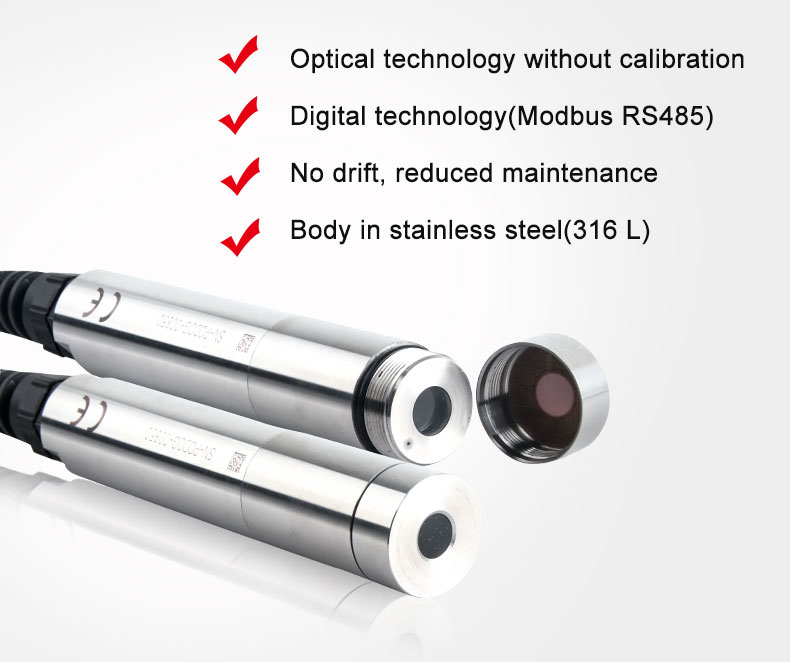

MIK-DO7016 Optical Dissolved Oxygen Sensor is based on luminescent optical technology. The Optical Dissolved Oxygen sensor is approved by the ASTM International Method D888-05 Features Range: 0.00 to 20.00 mg/LResolution:0.01Response time: 90% of the value in less than 60 secondsSignal interface: Modbus RS-485 (standard) and SDI-12 (option)Power supply:5 ~ 12 volts


Product Detail

Product Tags

  • Specification
  Product  Dissolved Oxygen sensor
  Model  SUP-DO7016
  Measure range  0.00 to 20.00 mg/L
  Resolution  0.01
  Response time  90% of the value in less than 60 seconds
  Temperature compensation  Via NTC
  Stocking temperature  -10°C to + 60°C
  Signal interface  Modbus RS-485 (standard) and SDI-12 (option)
  Sensor power-supply  5 to 12 volts
  Protection  IP68

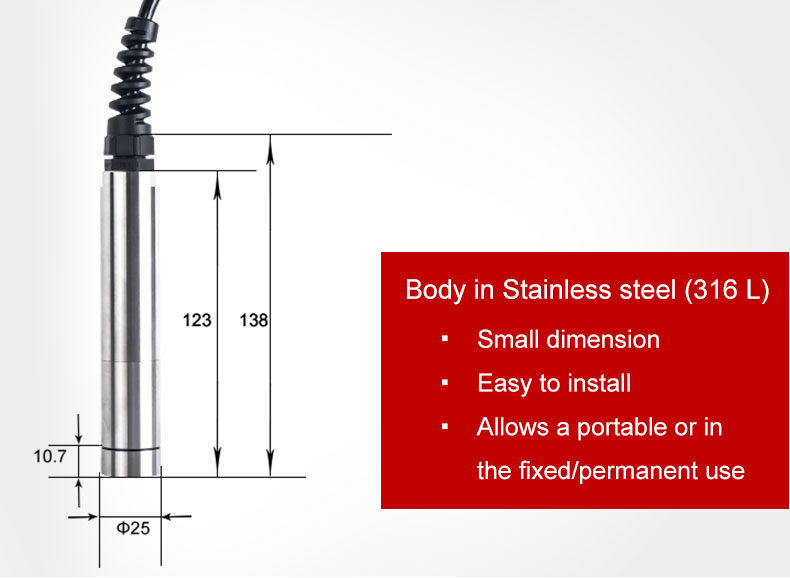

  Material  Stainless steel 316L, New : body in Titanium
  Maximum pressure  5 bars
