MIK-TDS6012 Conductivity sensor

Short Description:

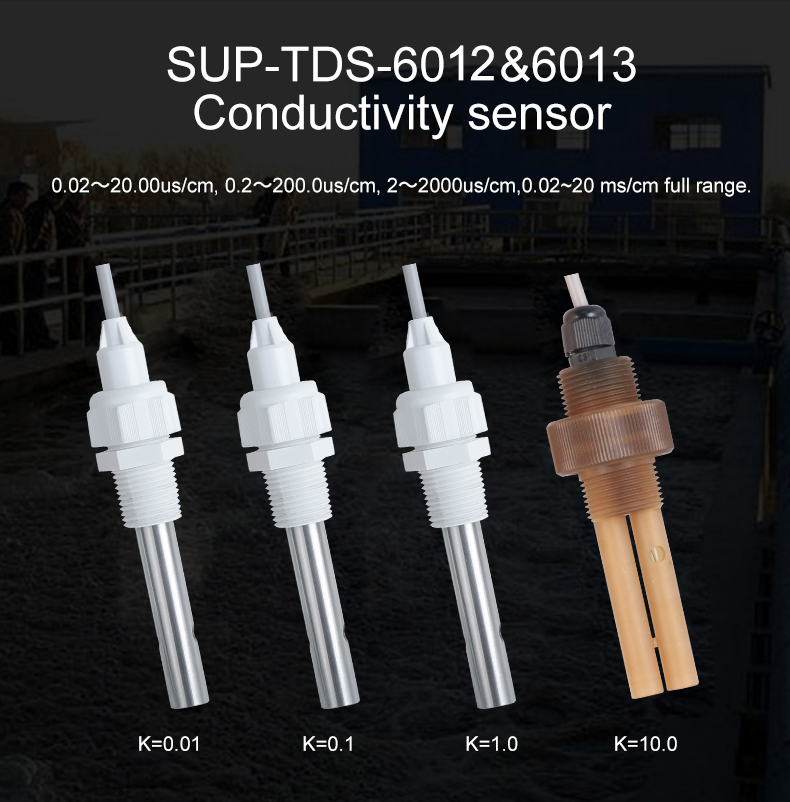

MIK-TDS-6012 A variety of functions in one: conductivity EC / TDS measurement capabilities to achieve two in one, cost-effective integrated design to support the boiler water, RO water treatment, sewage treatment, pharmaceutical industry and other liquid measurement and monitoring. Features Range:0.01 electrode: 0.02~20.00us/cm
0.1 electrode: 0.2~200.0us/cm
1.0 electrode: 2~2000us/cm
10.0 electrode: 0.02~20ms/cm


Product Detail

Product Tags

  • Specification
  Product  TDS sensor, EC sensor, Resistivity sensor
  Model  SUP-TDS6012
  Measure range  0.01 electrode: 0.01~20us/cm
 0.1 electrode: 0.1~200us/cm
 1.0 electrode: 1~2000us/cm
 Accuracy  ±1%FS
  Thread  NPT 1/2 、 NPT 3/4
  Pressure  4 bar
  Material  Stainless steel
  Temp compensation  NTC10K / PT1000 optional
  Temperature range  0-60℃
  Temperature accuracy  ±3℃
  Ingress protection  IP65



  • Introduction

  • Application

RO system

fertigation

conductivity meter

nevironmental
